Description

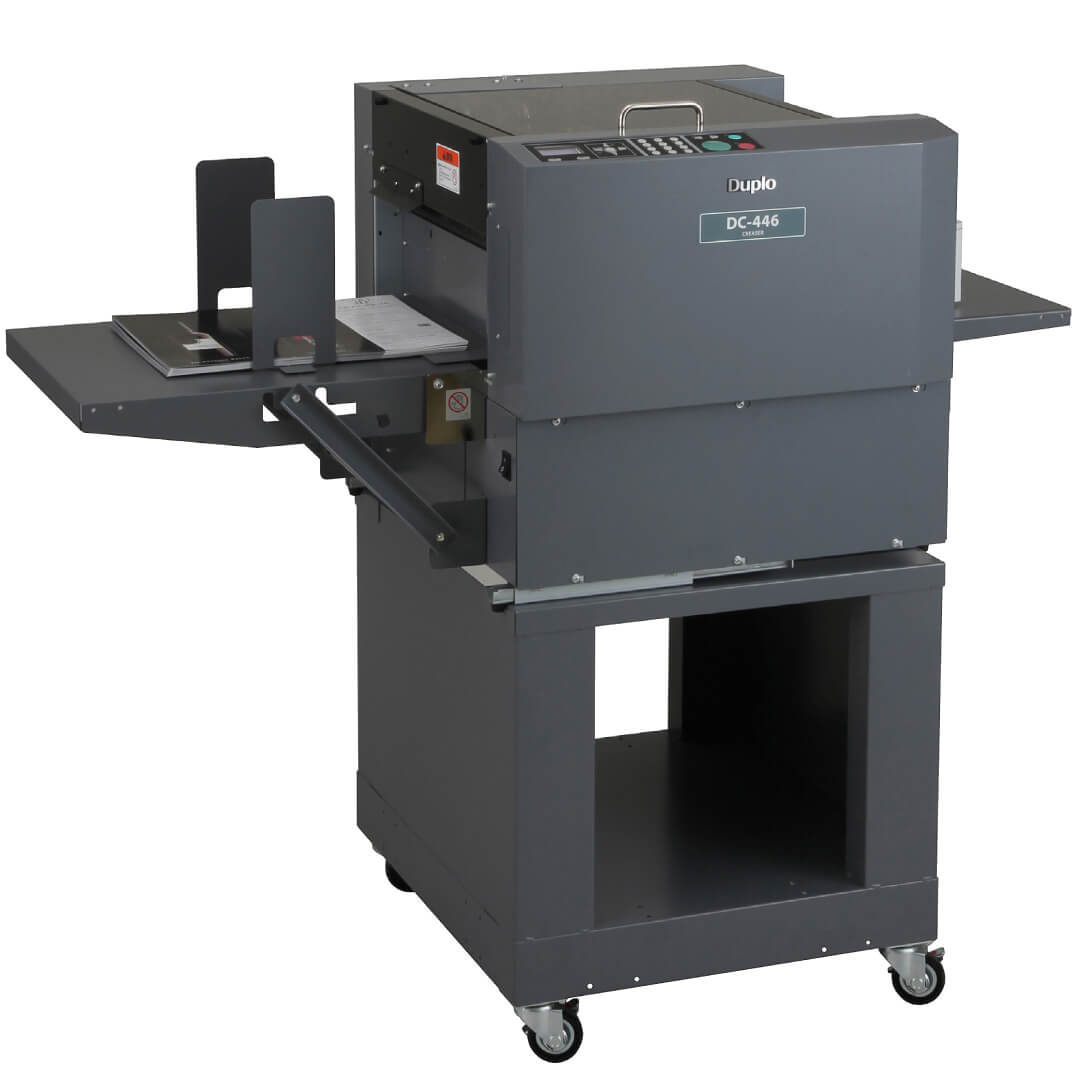

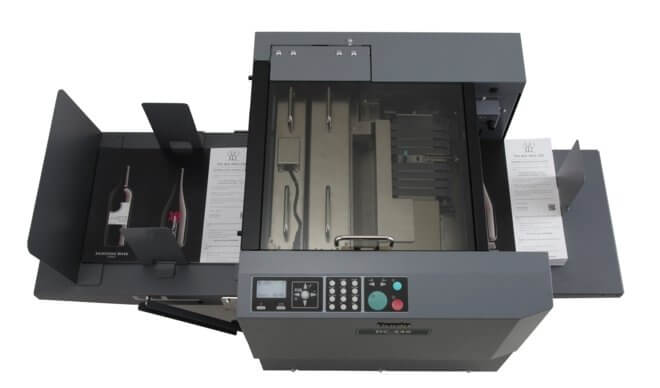

Duplo DC-446 Ducreaser
Reliable Feeding
The Duplo DC-446 has automatic 8-belt suction feed system ensures the consistent delivery of sheets with no risk of marking. If using digital stocks with high levels of static, an optional air knife can assist with sheet separation. An optional ultrasonic double feed detector ensures only one document will ever be processed at a time with any misfeeds easily retrievable and undamaged.
High Level of Consistent Accuracy
Up to 20 creases can be placed along the sheet and can be adjusted in 0.1mm increments ensuring a high degree of positioning accuracy. An extremely high level of consistent accuracy during any production run is also assured with a tolerance of +/- 0.3mm. Furthermore, the creasing tool can be automatically adjusted up or down to three possible positions to accommodate different stock thicknesses and provide the best finish.
100mm Feed Pile Height
The 100mm feed pile height is complementary to the rated speed and minimises any re-load time. The combination of this capacity along with the top feeding design, means the machine offers exceptional productivity, allowing the operator to perform other tasks while the DC-446 gets on with the job.
Options
A number of optional features are also available to maximize its functionality. An air-knife provides additional air to improve feed consistency and reduce static problems while double-feed detectors stop the machine when two or more sheets are fed, thus preventing mis-feeds and paper jams. Slitting and perforating tools can be added to eliminate white borders and create perforated pieces.
