Description

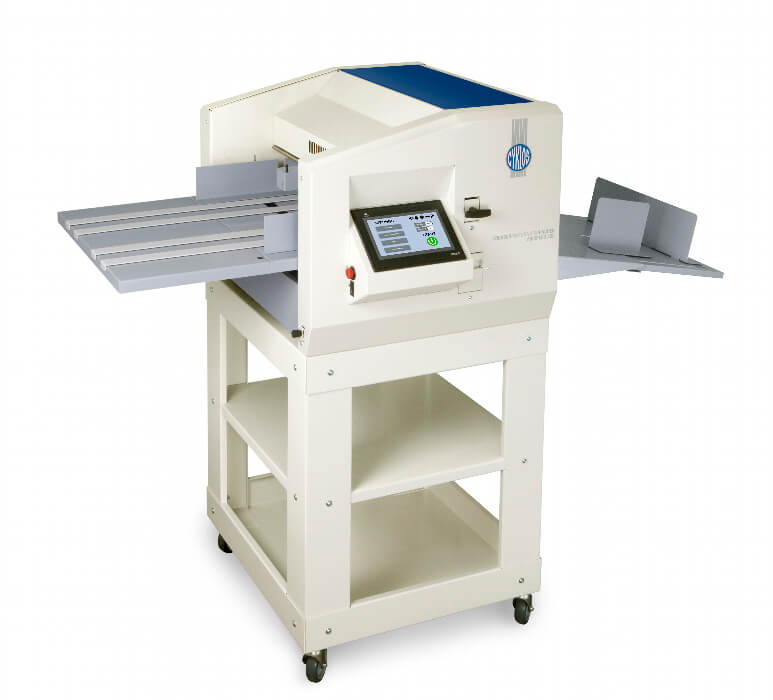

The Cyklos AIRSPEED 450 Creaser
| Cyklos AIRSPEED 450 WORKING WIDTH |
115 – 457 mm | |
| GRAMMAGE |
80 – 400 gsm (creasing, punching), 80 – 250 gsm (perforating) | |
| WIDTH OF CREASE |
CITO 1,0 mm – paper grammage 80 – 200 gsm iron channel 1,9 mm – paper grammage 200 – 400 gsm |
|
| MIN./MAX. DISTANCE BETWEEN CREASES |
1/ 999 mm | |
| NUMBER OF PROGRAMS |
60 | |
| INPUT CAPACITY |
70 mm | |
| SPEED |
3.000 sheets A4/ h (1 crease per sheet) 4.300 sheets A4/ h (0 crease per sheet) |
|
| MIN./MAX. NUMBER OF CREASES PER SHEET |
0/40 | |
| MAX. NUMBER OF PERF. WHEELS |
13 (1 in standard equipment) | |
| Cyklos AIRSPEED 450 DIMENSIONS |
1320 x 755 x 455 mm (h = 1225 mm – on table) | |
| PACKING SIZE |
1 pallet – 1200 x 800 x 720 mm (wooden box) | |
| Cyklos AIRSPEED 450 WEIGHT |
nett 140 kg, gross 189 kg (including mobile table) | |
| VOLTAGE / FREQUENCY |
230 V/ 50Hz, 110 V/ 60 Hz |
| OPTIONAL STRIKE TOOLS |
Punching tool – square 4×4 mm, 2:1 Punching tool – square 5×5 mm, 2:1 Punching tool – square 6×6 mm, 2:1 Punching tool – square 4×4 mm, 3:1 Punching tool – square 4×4 mm, 3:1, calendar punch Punching tool – round, dia 4 mm, 3:1 Punching tool – round, dia 4 mm, 3:1, calendar punch Microperforating tool 30 TPI Euro Punch tool Partial perforating tool Cutting tool |
|
| OPTIONAL ROTARY TOOLS |
Perforating wheel 9 TPI Microperforating wheel 30 TPI Cutting/kiss-cutting wheel |
