Description

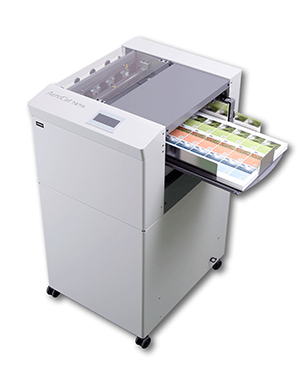

Uchida AeroCut Nano has 2 single slitter blades and 2 double slitter blades. These slitter blocks can be easily adjusted manually and fixed with a InstaSet bar – which is Uchida’s patented mechanism that you can intuitively snap on to the machine to change the job with keeping its extreme accuracy.
These amazing InstaSet bar makes job change much easier and quicker. Business cards, post cards, A4, A5, A6… varieties of standard size cards can be finished in an instant. You can even order bespoke InstaSet bars for your special jobs.
Thanks to its small footprint, the AeroCut nano fits to any workspace such as print shop, in-plant printing center, photo lab etc. The AeroCut nano runs quietly so you won’t be bothered. All the wastes are deflected to waste bin, so your workspace is always tidy.
As AeroCut nano has a intuitive touch panel, it’s easy to change job program and store it. It indicates what you need to do in case of error, so you don’t have to struggle with manual and waste time in making experiments any more.
| Basic Functions | Slit, Cross cut |
| In-feed paper size | 210(W)x210(L) to 330(W)x488(L)mm |
| Minimum finished size | 85(W)x50(L)mm |
| Paper weight | 120 to 350gsm *Depending on paper quality |
| Speed | 126 business cards/min. |
| Feeding mechanism | Upper belt air suction feed. |
| Features | Quick&easy tool free slitter position settings with *InstaSet bar Skew adjustment Cut-mark registration Double feed detection Detachable Machine table with waste bin Intuitive touch screen operation 16 preset jobs + 40 customized job memories |
| Dimensions | 565(W)x632(D)x963(H)mm |
| Footprint | 1190(W)x800(D)x1540(H)mm |
| Power source | 100-240VAC, 50/60Hz, single phase |
| Power consumption | 100W |
| Net weight | 70kgs (with machine table) |
InstaSet Bar
| *InstaSet Bar (Standard) |
A: SRA3/A3/A4 to 90mm width business cards B: SRA3/A3/A4 to 85mm width business cards |
| (Option Ver.1) | C: SRA3 to A3/A4 D: SRA3 to A5/A6 |
| (Option Ver.2) | E: A3 to A4/A5 F: A3 to A6 |
| Bespoke bar | Build-to-order InstaSet bar. Up to 4 slitter unit slots on one side – positions can be customized |
http://www.fingerprintdigital.com/wp-content/uploads/2018/03/AeroCut-nano_2page_printable.pdf
Product Manual PDF
