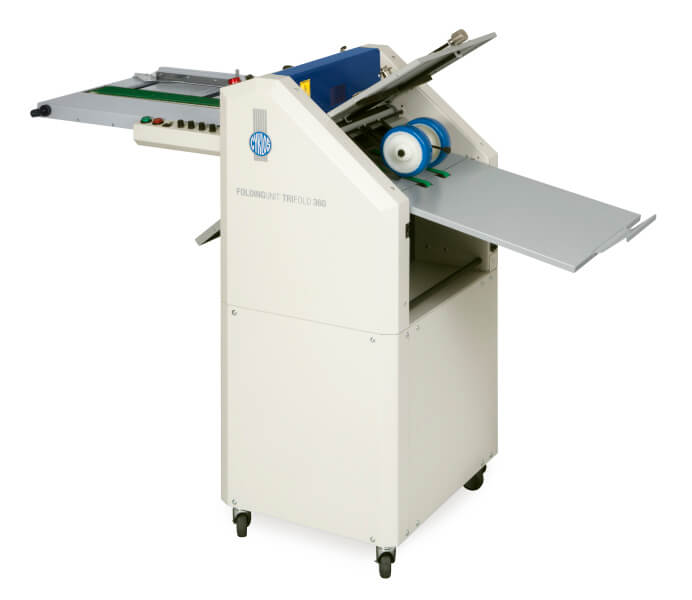

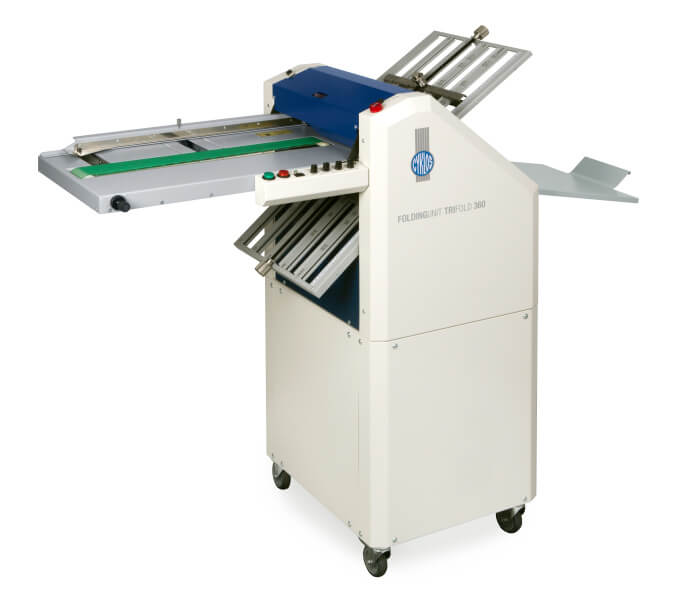

The folding unit TriFold 360 is designed primarily for folding of pre-creased material up to 350 gsm. It is ideal to combine the unit with Cyklos creasers GPM 450 Speed or AirSpeed 450. The TriFold 360 enables to create 5 fold types including the most common 1/2, C or Z. The fold is being achieved by combination of manually adjustable fold plates and high-diameter rubber rollers. This simple and inexpensive but revolutionary solution allowed us to create one of the most demanded product in the world of low-production digital press.
Contact the team at Fingerprint today to discuss your requirements on 01638 751962.
Haven't got time to call? No problem, visit our contact page for more ways to get in touch.

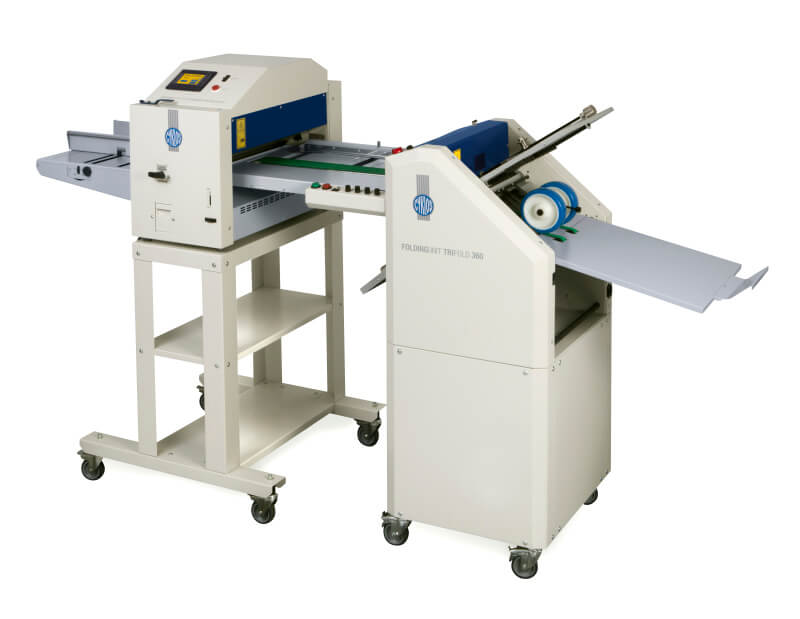

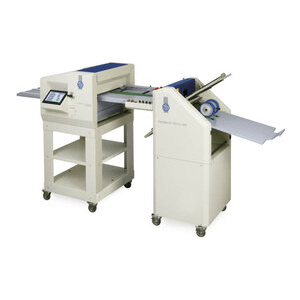

Contact FingerprintThe Cyklos TRIFOLD 360 is a folder designed to fold heavy weight card from digital printers. It is fed by the Cyklos airspeed 450 creaser.
| PAPER GRAMMAGE |
80 – 350 gsm | |
| PAPER FORMAT |
SRA3, A3, A4, A5, atypical formats | |
| SPEED |
up to 6.000 sheets/h depends on speed of creaser |
|
| LENGTH OF FOLD PLATES |
X = 460 mm Y = 320 mm |
| WEIGHT | 113 kg (nett) 148 kg (brutt) |
|
| VOLTAGE / FREQUENCY |
230 V / 50 Hz |
