Description

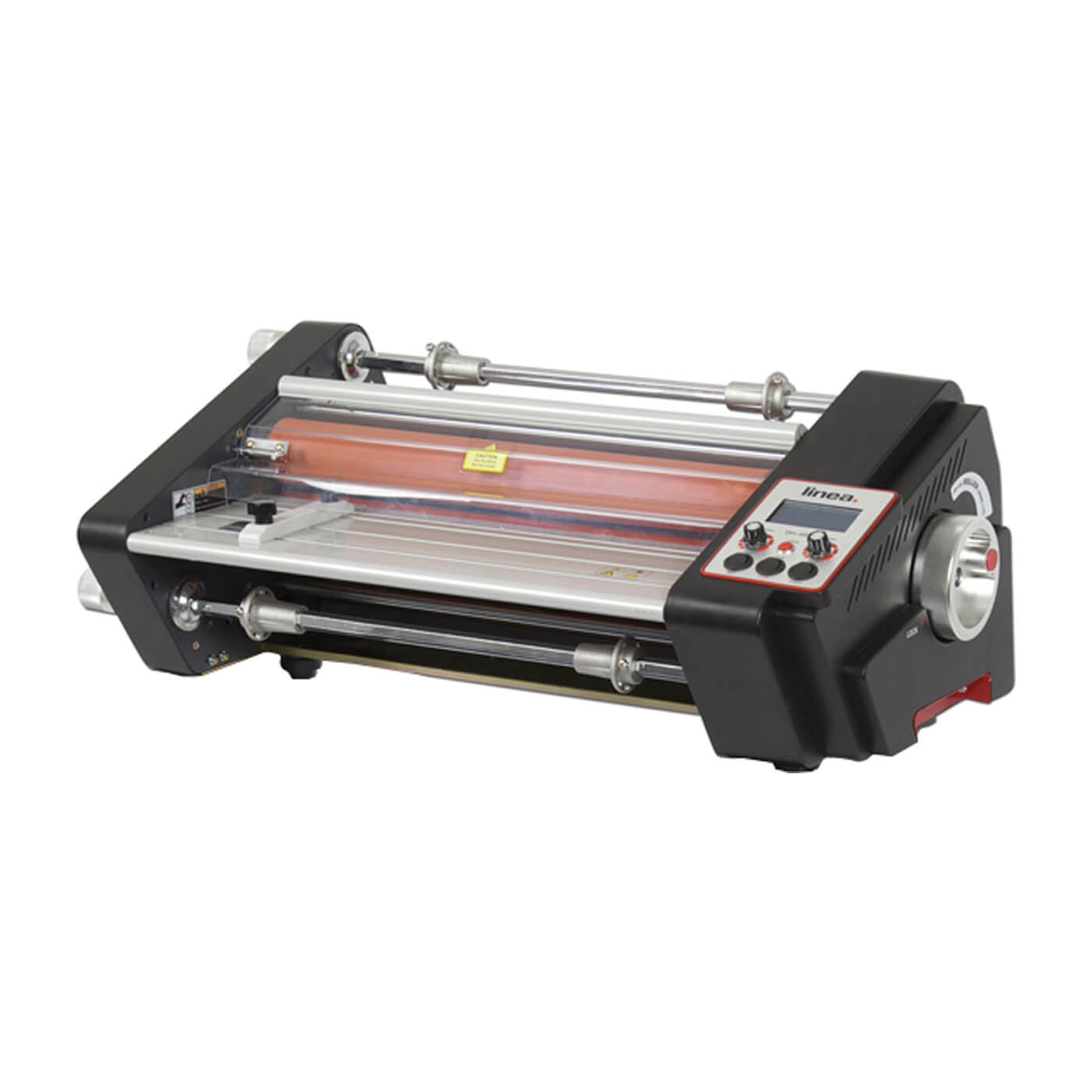

The Linea DH range enables you to laminate up to A0 in size. The DH1100 also features a take-up mechanism for cold lamination and encapsulation. Simple to use the Linea is a great system for reprographics departments and smaller copy shops and will produce outstanding results for very little effort. The Linea can be mounted on to a stand or can be placed straight on the desktop.
Features of the Linea DH range
- Laminates wide format graphics up to A0 in size
- Laminates onto most stocks
- Mounts onto Folex and similar display boards
- Hot and cold laminating and encapsulating
- Continuous roll fed system
- Release liner take-up mechanism
- Adjustable temperature control
- Adjustable speed control
- Anti-jam reverse switch
- Attached safety shield
- Takes a variety of roll film up to 250 micron
Specifications:
- Sizes up to A0
- Laminating Width: 460 / 650 / 1100mm
- Laminating Speed: 1.6m / Min
- Film Core Size: 58mm / 77mm (3ins)
- Maximum Laminating Temperature: 140 C
- Power: 230v ac
These are superb models, with a heavy duty build quality designed to last. The electrical design and temperature control maintains the quality of laminating on short and long runs. Well constructed roller mountings ensure even pressure across a wide range of stocks. Standard films have good adhesive results on most digital work, where full coverage or individual printer characteristics cause a reduction in sealing quality our higher tack films have produce excellent professional results.
Models in the Linea DH range:
Model DH360 up to SRA3
Model DH450 up to A2
Model DH650 up to A1
Model DH1100 up to A0
Linea 1100 overview video
These are a best seller and know you wont be disappointed, so call for details, samples and up to date prices on these, and our vast range of other laminators.
