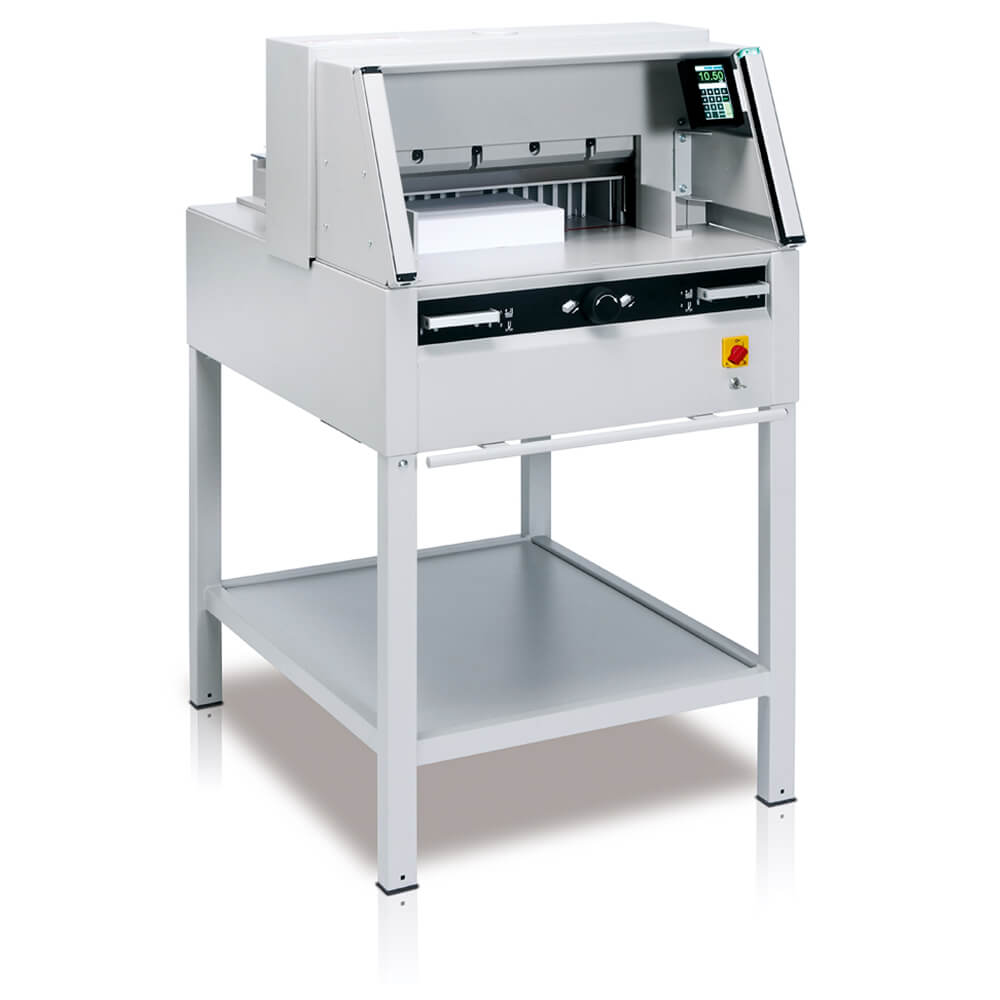

Ideal 4860 professional guillotine

Brand: Ideal

The Ideal 4860 professional guillotine with an ergonomic working height. Electro-mechanical blade and clamp drive. Electric back gauge drive with touch pad for easy setting, multilingual operator guidance and digital display.

Category:

Interested in this product?

Contact the team at Fingerprint today to discuss your requirements on 01638 751962.

Haven't got time to call? No problem, visit our contact page for more ways to get in touch.

Contact Fingerprint

Description

Ideal 4860 professional guillotine

Touchpad

Extremely convenient and easy-to-use: Electronic control module for the power backgauge with multilingual touch pad. 99 programs with up to 99 steps can be stored. Also useful: the pre-programmed DIN sizes and the automatic memory for repeat cuts.

IR light beam

Efficient and safe cutting and trimming is guaranteed by the IR light beam safety curtain on the front table. Additional safety is provided by the transparent safety cover on the rear table.

Blade activating bars

Blade and clamp can be activated independently via the two-step blade activating bars with separate trigger points for blade and clamp. The electronically controlled true two-hand operation provides maximum operator safety.

Optical cutting line

The optical cutting line with bright, durable LEDs shows where the cut will be performed and helps to align cutting marks precisely for accurate cuts.

Electronic hand wheel

Electronic hand wheel for manual backgauge positioning with infinitely variable speed control (from very slow to very fast).

Hook-in tool holder

The practical hook-in tool holder is placed on the back table and keeps all necessary tools for blade change and service jobs within reach.

Safety-cutting system

In addition to the light beam safety curtain on the front table, our SCS safety package comprises the following features: safety cover on the rear table / lockable main switch with key / two-hand safety activation with repetition blocking and control for synchronous operation / automatic blade and clamp return from every position / disc brake for instant blade stop / blade changing device with covered cutting edge / easy blade depth adjustment from the outside on the machine / easy blade change from the front of the machine without removing covers.

Pre-programmed measurements for standard paper sizes.  Electro-mechanical  blade and clamp drive. Blade made of German high quality steel. Solid steel blade carrier and adjustable blade guides. Optical cutting line with bright and durable LEDs.



https://media.ideal.de/wl/?id=PUDTrbJnwbIuz5Y5F2frzehFTumTi6uG

Product Manual PDF

Click here to view our range of supplies for the Ideal range of guillotines.
