Description
Duplo DB-290 Perfect Binder
Perfect Binding – Binds loose sheets with a cover wrapped around the spine
Tape Binding – Binds loose sheets with a strip of tape
Padding – Binds loose sheets together on the spine without notching
Better Notching and Roughing
The binding process on the DB-290 includes a double pass over its unique notching and roughing system to ensure excellent glue penetration. The DB-290 perfect binder has a wide notching blade that cuts deeper, wider notches into your book block, enabling the glue to penetrate deeper into the grooves, while the milling disk roughens the spine, creating a strong bind.
Side Gluing as Standard
The duplo DB-290 perfect binder offers side gluing as standard. This is performed by wheels with their own dedicated glue tank and enables the operator to use an EVA glue which dries quickly and enables your book to be cut to size quicker. The glue in the main tank can then be a different EVA glue which takes longer to cure, giving more time for the adhesive to thoroughly penetrate into the spine, resulting in a better perfect bind and squarer spines for your books.
The Duplo DB-290 is Easy to Operate

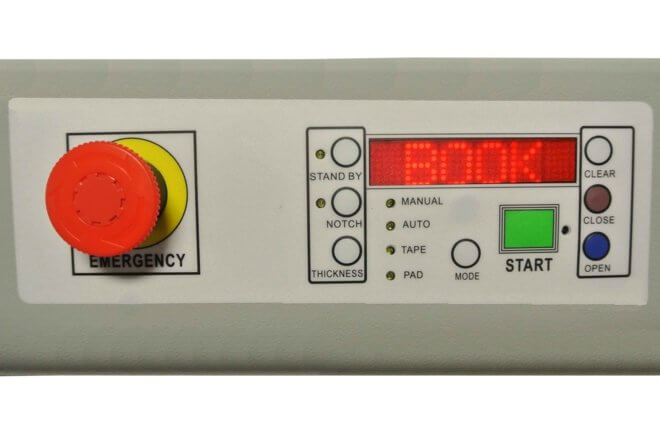

Anyone can use the DB-290 perfect binder. You don’t have to be a skilled operator to finish your own, high quality perfect bound book. The LED display panel guides the operator through the entire binding process. The DB-290 uses this ergonomically designed control panel for single-operator efficiency. The clearly marked LED display ensures more precise perfect binding settings and with a quick push of a button, you can convert and use the DB-290 for padding jobs.
Duplo DB-290 Specifications
Maximum Book Size – 320 mm (spine length) x 400 mm
Minimum Book Size –120 mm (spine length) x 50 mm
Maximum Cover Size – 320 mm (spine length) x 750 mm (using ruler guides for cover alignment) 320 mm x 840 m (using centre marks for cover alignment)
Maximum Binding Thickness – 40 mm
Glue Warm-up – 30 minutes
Glue Warm-up in Stand-by Mode – 5 minutes
Glue Warm-up – 30 minutes
Glue Warm-up in Stand-by Mode – 5 minutes
Cycle Speed – Up to 360 cycles per hour
Production Speed – Up to 200 books per hour
Production Speed – Up to 200 books per hour
Notching & Roughing – Double pass
Operation Modes – Pad, tape, cover
Standard Features – Stand-by mode, LED display, error detection display
Power Source – 220/240V, 50Hz/10A
Dimensions (WxDxH) – 1,300 mm x 560 mm x 470 mm
Weight – 143 kg
Automated Operation
The DB-290 can be set to run automatically or manually. When in Auto mode, the full benefits of the DB-290 are shown through the automation of the clamping, release, nipping and binding functions with minimal user intervention and maximum productivity.
Convenience
For maximum efficiency, the DB-290 features a cover detection sensor at the nipping station, this ensures that the clamp will not travel back to the nipping position until the cover stock is in position. For added convenience the operator has the option to preset the nipping and clamping time.
